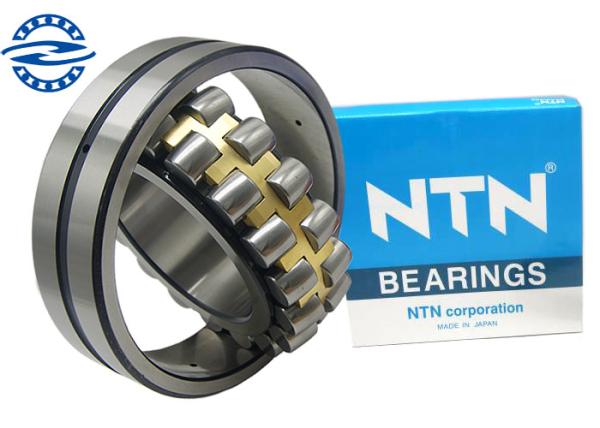

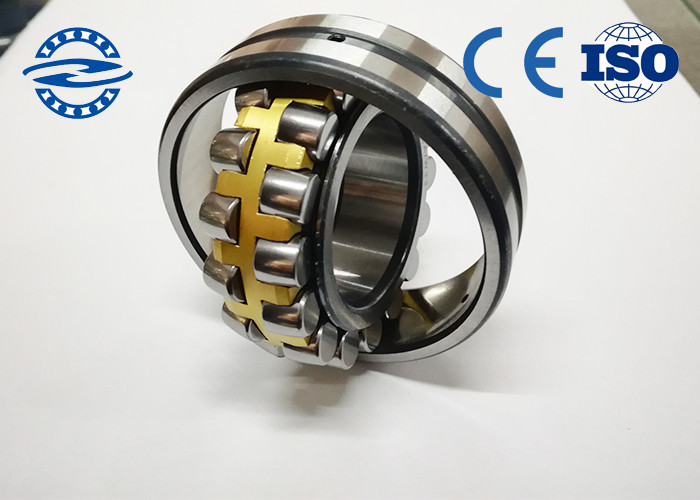

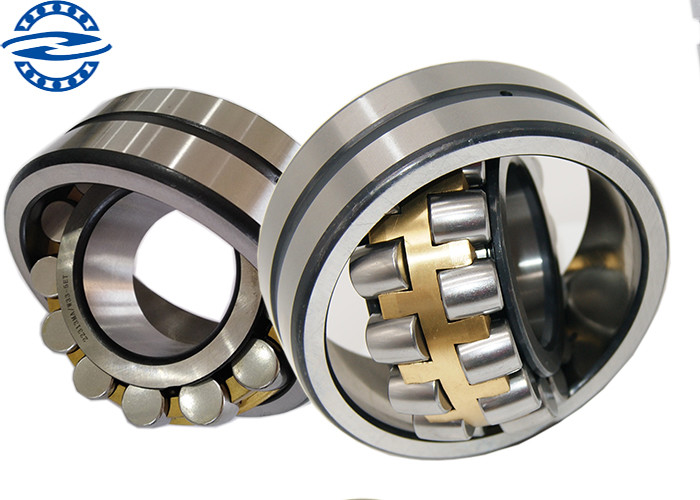

NTN Tractor electric bicycle spherical roller bearing 22320CAM/W33 roller bearing with copper cage
Product Desviption
NTN Tractor electric bicycle spherical roller bearing 22320CAM/W33 roller bearing with copper cage
Self-aligning roller bearing is a bearing with two inner ring raceways, self-aligning outer ring raceways and strip roller.The center of the outer ring raceway surface is consistent with the bearing center, so it has the movable center adjustment performance and can automatically adjust the eccentricity caused by the installation error or shaft deflection between the shaft and the shaft seat
| bearing number | dimension(mm) | weight(kg) |
| 22306 | 30*72*19 | 0.37 |
| 22307 | 35*80*31 | 0.75 |
| 22308 | 40*90*33 | 1.03 |
| 22309 | 45*90*33 | 1.4 |
| 22310 | 50*110*40 | 1.85 |
| 22311 | 55*120*43 | 2.42 |
| 22312 | 60*130*46 | 3 |
| 22313 | 65*140*48 | 3.65 |
| 22314 | 70*150*51 | 4.4 |
| 22315 | 75*160*55 | 5.47 |
| 22316 | 80*170*58 | 6.63 |
| 22317 | 85*180*60 | 7.07 |
| 22318 | 90*190*64 | 8.76 |
| 22319 | 95*200*67 | 9.93 |
| 22320 | 100*215*73 | 13.7 |
| 22322 | 110*240*80 | 17.7 |
| 22324 | 120*260*86 | 22.9 |
| 22326 | 130*280*93 | 28.5 |
| 22328 | 140*300*102 | 35.5 |
| 22330 | 150*320*108 | 42 |
| 22332 | 160*340*114 | 52.2 |
| 22334 | 170*360*120 | 60.7 |
| 22336 | 180*380*126 | 72.6 |
| 22338 | 190*400*132 | 84.2 |
| 22340 | 200*420*138 | 94.4 |
| 22344 | 220*460*145 | 119 |
Products Show
Our company
Guangzhou qireal company is a bearing production, sales - based company, the company in the industrial field has many years of bearing supporting and industrial service experience.Types involved: deep groove ball bearings, joint bearings, conical bearings, cylindrical bearings and so on Our products are widely used in machine tools, coal mine, railway, petroleum printing, power plant, ship, aviation, automobile and other industries
Our Sevrice
1.High precision, High accuracy, High speed
2. ISO 9001:2000
3. Can be customized according to your needs
4. Can provide small & miniature standard and non-standard ball bearings
5. Reasonable price
6. Technology: low vibration, low noise, high precision and durability
7. our quality is higher among the same price,our price is lower among the same quality,
8. For the same quantity bearings , our delivery time is shorter than other factory .
However , if the quantity is a little larger , the delivery time is about 3-15 days .
9. We supply best service. A good reputation has been our company virtue.
packing Delivery
According to customer requirements
FAQ
QQ: Are you trading company or manufacturer ?A: We are factory.
1.What is the producing process?
Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.
2.How to control the products quality?
Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over the world.
3. What is the transportation?
If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large amount, by shipping.
4. Can we design packaging?
Yes. Default is regular packing, and we can make customer's own packing.
5. Can you provide OEM service?
Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products.
6. Could you tell me the delivery time of your goods?
3-7 days stock goods and other goods according to the quantity about 3-21 days.
7. Can you give me discount on bearing?
Yes, of course. Pls. send me your Email, you’ll get more
